Compact Double Rotary Mixing And Cooling Equipment Clay Sand Processing Equipment

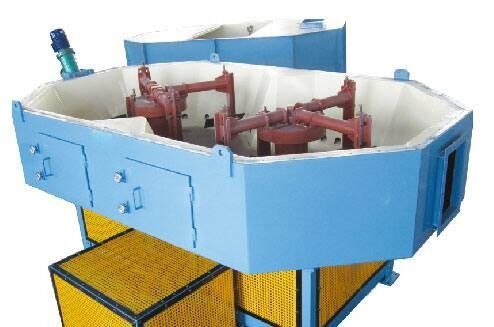

Double rotary mixing and cooling equipment

Introduction to Features :
This equipment is mainly suitable for cooling clay sand and old sand. Fully stir and mix the old sand to ensure uniform temperature, humidity, and composition. While cooling, complete the pre mixing process to prepare high-quality molding sand. The equipment has a compact structure, smooth operation, low noise, and low energy consumption; The reverse rotating crosshead drives the scraper to push the material to mix evenly; High pressure air blowing keeps the old sand in a boiling state, achieving cooling effect; The opening of the discharge door can be adjusted to control the emptying of materials in the machine basin;It can be combined with the old sand humidification cooling system, blower, and exhaust fan to form an old sand cooling unit, with good cooling effect.

Detailed remarks:
1. The reverse rotating crosshead drives ten scraper plates to evenly mix the materials, and the bottom surface of the mixing component is made of wear-resistant ceramic material;
2. High pressure blowing keeps the old sand in a boiling state, resulting in better cooling effect;
3. The opening of the discharge door can be adjusted to control the emptying of materials inside the machine box;
4. It can form an old sand cooling unit with the old sand humidification cooling system, blower, exhaust fan, and water adding system, and can control the temperature of the old sand to reach room humidity+10 ° C;
5. According to the different installation positions, the feeding method of this machine can be made into vertical and linear feeding methods, with two unloading directions: left and right.
